Corners are the most wasted storage space in a Singapore home or storeroom and the PVC Laminated U-Shaped Rack is built specifically to solve that. Instead of running shelving along a single wall, the U-shape wraps around three sides of a corner, turning dead space into 12 usable shelf levels (4 levels × 3 arms the “4x4x4” in the name) without eating into your walking area.
This guide breaks down exactly what the PVC Laminated U-Shaped 4x4x4 rack is, what sizes and load ratings it comes in, and how to choose it correctly for your space.
What Is a PVC Laminated U-Shaped Rack?

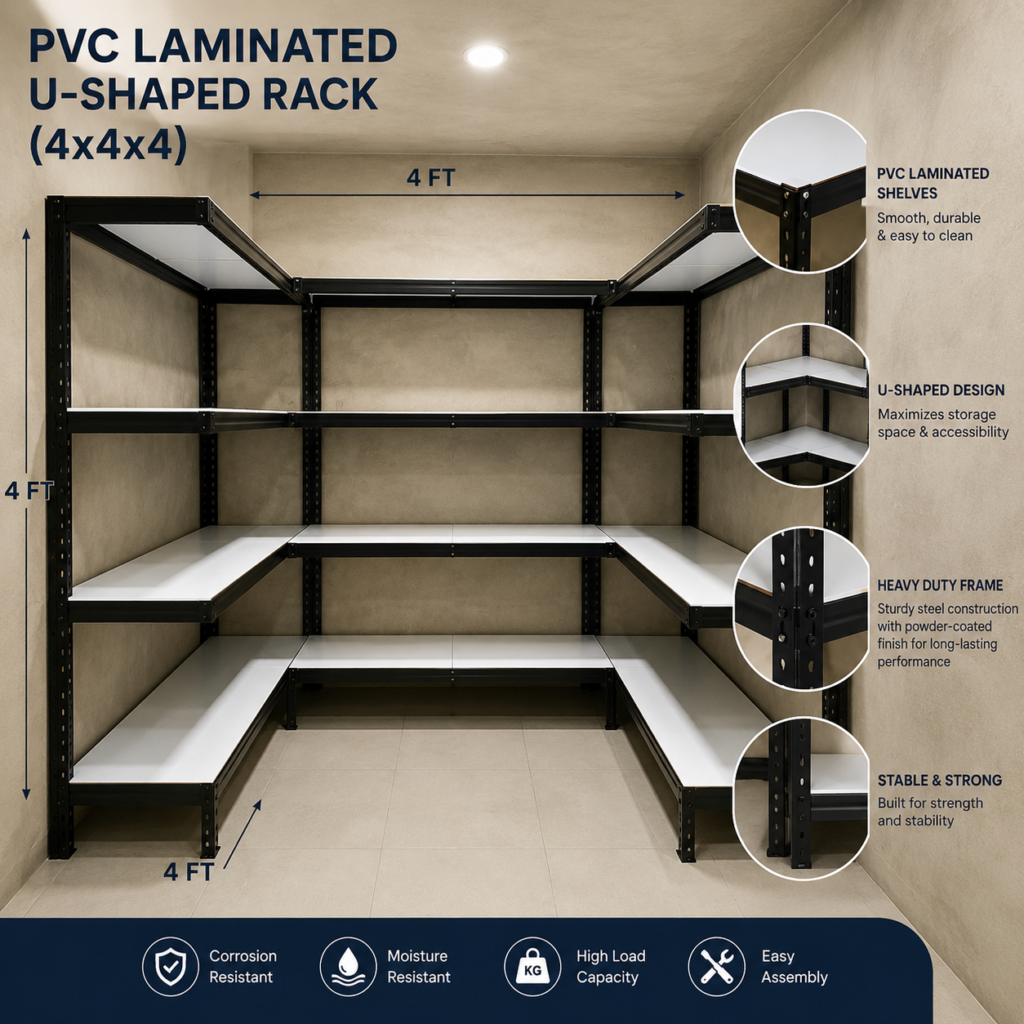

It’s a boltless, corner-wrapping storage rack made of three connected shelving runs arranged in a U so you get shelving on the back wall and both side walls of a corner in one continuous unit. Each of the three arms carries 4 shelf levels, which is where the “4x4x4” naming comes from.
The “PVC Laminated” part refers to the shelf decking: rather than bare steel, each shelf is a board finished with a PVC laminate surface (built on a 9mm HDF board core, with top and bottom laminate), giving a smoother, easier-to-clean surface than a raw steel or wire deck while the frame itself remains steel, coated in epoxy powder for rust resistance.
Key Specifications
| Spec | Detail |
| Shelf levels | 4 levels per arm (4x4x4 across the U) |
| Load capacity | 300kg UDL per shelf |
| Frame material | Steel, epoxy powder coated |
| Decking | PVC laminate over 9mm HDF board (top & bottom laminate) |
| Height options | 1840mm, 2160mm, 2440mm, 2760mm, 3000mm |
| Length options | 600mm, 750mm, 900mm, 1050mm, 1200mm, 1350mm, 1500mm, 1800mm |
| Depth options | 300mm, 450mm, 600mm |
| Colour options | Off White, Black |
| Assembly | Boltless no tools required |
| Warranty | 1 year |
With five height options, eight length options, and three depth options per arm, the rack can be configured to fit almost any corner footprint from a compact HDB storeroom to a full warehouse bay.
PVC Laminate vs. Full Metal: Which U-Shaped Rack Should You Choose?
ASC Racking offers this U-shaped rack in both PVC laminate and full metal decking. Both share the same steel frame, boltless assembly, and 300kg per shelf load rating the difference is entirely in the shelf surface, and it changes what the rack is best suited for:
| PVC Laminate | Full Metal | |
| Shelf surface | Laminated board, smooth and enclosed | Bare epoxy-coated steel |
| Best for | Household items, boxes, retail stock, office supplies | Warehouse pallets, tools, heavier or irregular loads |
| Cleaning | Wipe-clean surface | Standard metal cleaning |
| Look | Finished, furniture-like appearance | Industrial appearance |
| Price | Generally lower at equivalent size | Generally higher at equivalent size |
If the rack will be visible a storeroom, office, or retail back-of-house the PVC laminate finish gives a cleaner, more finished look for a lower price point than the full metal equivalent at the same dimensions. If it’s going into a warehouse handling heavier or rougher loads day to day, full metal decking holds up better to direct wear.
Where the PVC Laminated U-Shaped Rack Fits
- HDB storerooms the U-shape is a natural fit for the corner layout of most HDB storeroom units, maximising capacity without blocking the walkway.
- Warehouses stackable, high-density corner storage for inventory management.
- Offices a tidy, laminate-finished option for supplies, files, and equipment in spaces where appearance matters.
- Retail back-of-house quick-access stock organisation for faster restocking.
Assembly and Delivery
The rack uses a boltless design, so it goes together without tools most units are assembled in around 15 minutes per section. ASC Racking also includes free islandwide delivery on orders over $200 ($20 delivery fee under that), with free professional installation bundled into rack purchases. Standard delivery runs 3–7 working days from order confirmation.
Sizing Guide: Choosing Your Dimensions
Because the rack comes in five heights, eight lengths, and three depths per arm, it helps to measure before choosing:
- Height measure your ceiling clearance and subtract at least 5–10cm for installation clearance. HDB storerooms typically suit the 1840mm–2440mm range; warehouses with higher ceilings can go up to 3000mm.
- Length measure each wall of the corner separately, since each arm of the U can be configured independently.
- Depth 300mm suits lighter household items and files; 450mm–600mm suits boxes, bins, and warehouse-style storage.
FAQ
What does “4x4x4” mean on this rack?
It refers to the 4 shelf levels on each of the three arms that make up the U-shape three sides of shelving, four levels each.
What’s the weight capacity of the PVC laminated U-shaped rack?
300kg UDL (uniformly distributed load) per shelf.
What’s the difference between the PVC laminate and full metal versions?
Both share the same steel frame and load rating. The PVC laminate version has a laminated board shelf surface for a cleaner, easier-to-clean finish, typically at a lower price than the full metal equivalent which uses bare epoxy-coated steel decking, better suited to heavier warehouse use.
Do I need tools to assemble it?
No it uses a boltless design and typically assembles in around 15 minutes.
Is installation included?
Yes, free professional installation is included with rack purchases across Singapore.
What colours is it available in?
Off White and Black.
