Not every storage rack needs to look industrial. The PVC Laminate 4-Level Rack pairs a standard boltless steel frame with laminated board shelving giving you the load capacity of a warehouse rack with a finish that looks at home in a living room, office, or storeroom. It’s ASC Racking’s straight, single-run entry point into the PVC laminate range, and the base configuration that the L-shaped and U-shaped corner racks are built from.
Here’s what’s actually inside it, what sizes it comes in, and when to choose it over the full metal or corner-shaped alternatives.
What Is the PVC Laminate 4-Level Rack?

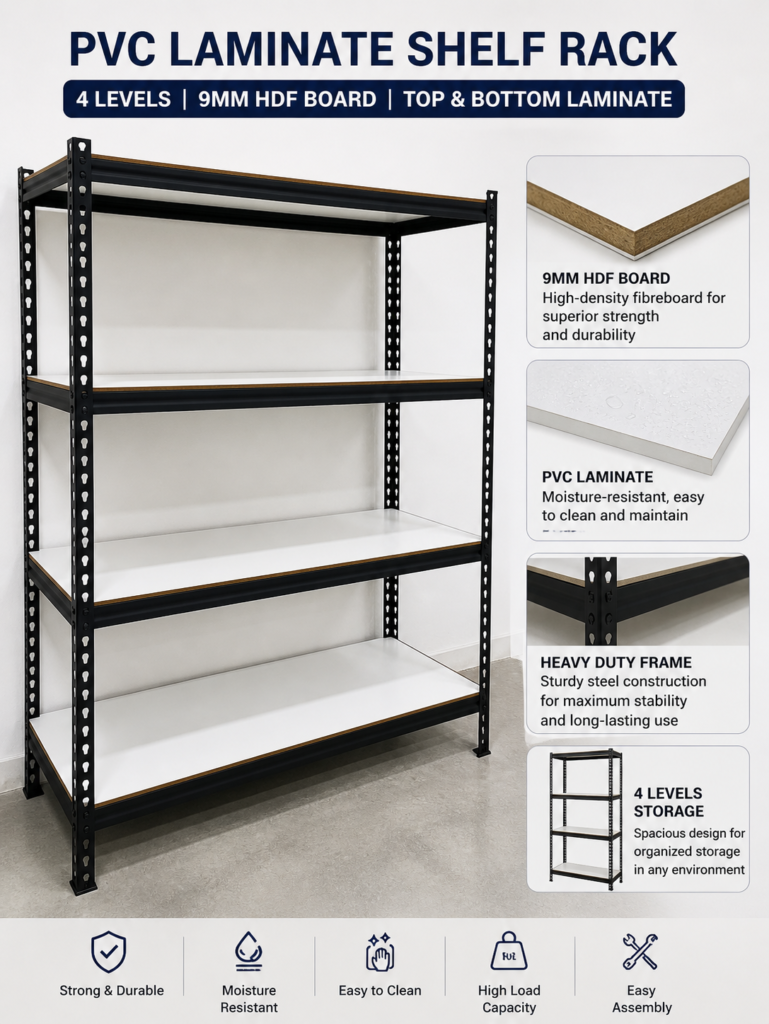

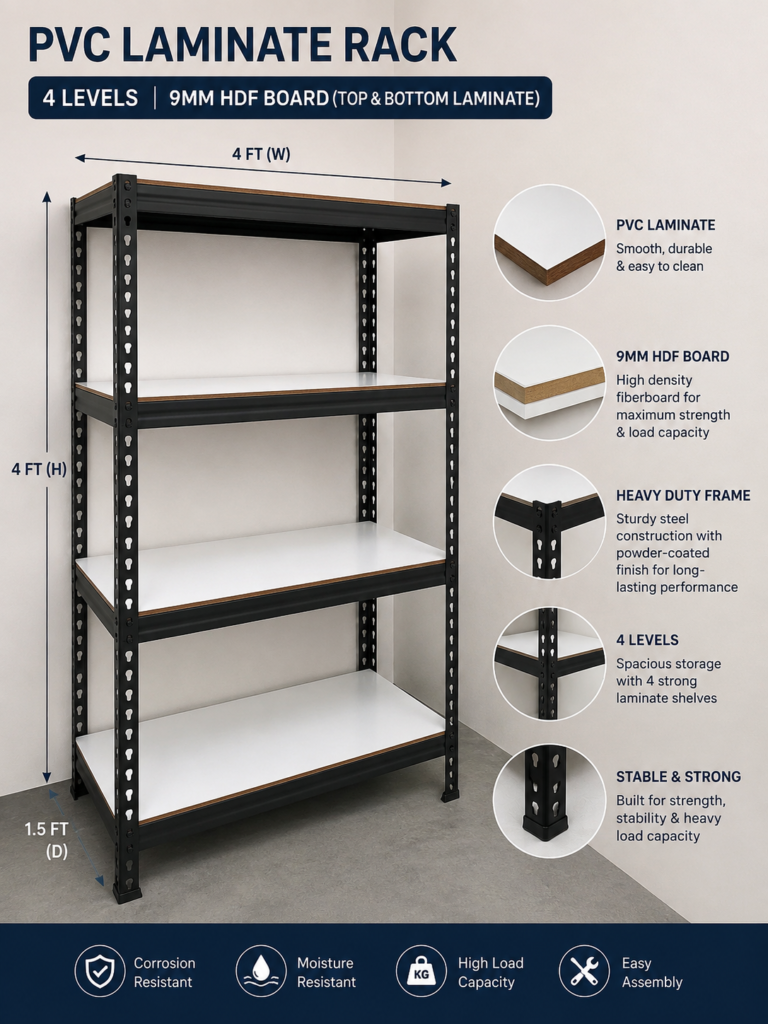

It’s a boltless steel-frame shelving unit with four shelf levels, where each shelf is a laminated board rather than bare metal decking. The board itself is built on a 9mm HDF (high-density fibreboard) core, with PVC laminate applied to both the top and bottom faces not just the visible top surface. Laminating both sides matters more than it sounds: it keeps the board dimensionally stable and protects the underside from moisture as well as the top, which is the surface that actually takes the wear.
The frame underneath is the same as ASC Racking’s other boltless racks steel, coated in epoxy powder for anti-rust protection so the load rating and assembly method are identical to their full metal equivalents. The difference starts and ends at the shelf surface.
Key Specifications
| Spec | Detail |
| Shelf levels | 4 levels |
| Load capacity | 300kg UDL per shelf |
| Frame material | Steel, epoxy powder coated |
| Decking | PVC laminate, 9mm HDF board, laminated top and bottom |
| Height options | 1840mm, 2160mm, 2440mm, 2760mm, 3000mm |
| Length options | 600mm, 750mm, 900mm, 1050mm, 1200mm, 1350mm, 1500mm, 1800mm |
| Depth options | 300mm, 450mm, 600mm |
| Colour options | Off White, Black |
| Assembly | Boltless no tools required, roughly 15 minutes |
| Warranty | 1 year |
Why 9mm HDF Board, Laminated on Both Sides
HDF sits between MDF and particleboard in density dense enough to resist sagging under load across a shelf span, but still light enough that a fully loaded rack stays manageable to assemble and adjust by hand. At 9mm thickness, it’s built specifically for shelf spans rather than structural framing, where the steel frame is doing the load-bearing work and the board just needs to hold its shape under the distributed weight sitting on it.
Laminating both faces not just the top is what separates this from a basic laminated shelf board. A single-sided laminate leaves the underside of the board exposed to humidity, which in Singapore’s climate is enough over time to cause warping even if the top surface looks fine. Laminating top and bottom keeps moisture exposure balanced on both faces, which is the actual mechanism that prevents warping not just the visible finish.
How It Compares to ASC Racking’s Other Rack Lines
| PVC Laminate 4-Level | Full Metal 4-Level | PVC Laminated U-Shaped (4x4x4) | |
| Shape | Single straight run | Single straight run | Three-arm corner unit |
| Decking | Laminated 9mm HDF board | Bare epoxy-coated steel | Laminated 9mm HDF board |
| Load per shelf | 300kg UDL | 300kg UDL | 300kg UDL |
| Best for | Visible storage in homes, offices | Warehouse and heavy-duty use | Corner spaces needing more capacity |
| Starting price | $145.00 | $165.00 | From $290.00 (or $145–$365 per configuration) |
In practice, the PVC Laminate 4-Level rack is the building block: the same laminated decking and frame construction scale up into the L-shaped and U-shaped corner configurations when you need to wrap around a wall rather than run along it.
Where It’s Used
- HDB storerooms a finished-looking option for a space that’s often visible when the door is open.
- Offices files, supplies, and equipment storage where appearance matters.
- Homes and condos general household storage that doesn’t need to look like warehouse racking.
- Light warehouse and retail back-of-house anywhere the 300kg per-shelf capacity is needed without the bare-metal industrial look.
Assembly and Delivery
Like ASC Racking’s other boltless racks, this one goes together without tools in around 15 minutes. Orders placed before 2pm can qualify for same-day delivery, with free islandwide delivery on orders over $200 and free professional installation included with rack purchases.
FAQ
What does “9mm HDF board, top and bottom laminate” actually mean?
The shelf core is 9mm high-density fibreboard, with PVC laminate applied to both the top and underside of the board not just the visible top surface.
What’s the load capacity?
300kg UDL (uniformly distributed load) per shelf, the same rating as ASC Racking’s full metal racks.
How is this different from the full metal 4-level rack?
Same steel frame, same load rating, same assembly method the only difference is the shelf decking. This one uses laminated HDF board for a cleaner, easier-to-clean finish; the full metal version uses bare epoxy-coated steel decking.
Can this rack be configured into an L-shape or U-shape?
Yes the same laminated decking is used in ASC Racking’s PVC Laminated L-Shaped and U-Shaped corner racks, which are built from the same 4-level base configuration extended around a corner.
Do I need tools to assemble it?
No it’s a boltless design that typically assembles in about 15 minutes.
What colours does it come in?
Off White and Black.
